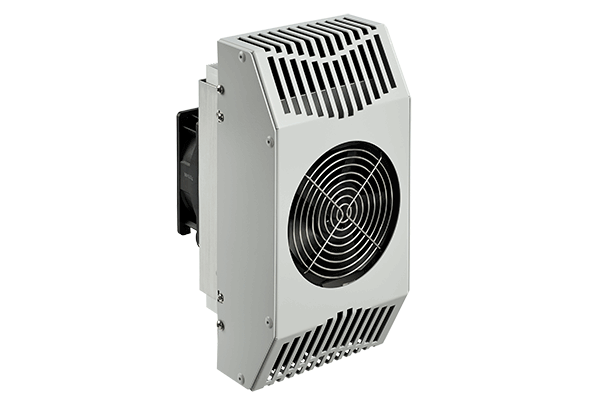

nVent Hoffman - Thermoelectric Coolers Indoor/Outdoor - TE09
Description
Thermoelectric Coolers minimize downtime and component loss by removing heat around critical components within an enclosure. These compact, low-profile coolers using the Peltier effect allow for cooling of small indoor and outdoor enclosures.
Applications:
Thermoelectric Coolers minimize downtime and component loss by removing heat around critical components within an enclosure. These compact, low-profile coolers using the Peltier effect allow for cooling of small indoor and outdoor enclosures. No condensers, compressors or filters are required making it a reliable solution for demanding low-maintenance environments.Features:
- DC Powered operation for 24V and 48V applications
- Low profile design allows for mounting vertically and horizontally on any enclosure to avoid interference with internal components
- Filterless design reduces maintenance requirements
- Contains no refrigerant, making it earth friendly
- Prewired with simple terminal block for easy wiring connections
- Operates on the Peltier effect for cooling or heating
- Compressor-free air conditioning for demanding indoor and outdoor applications

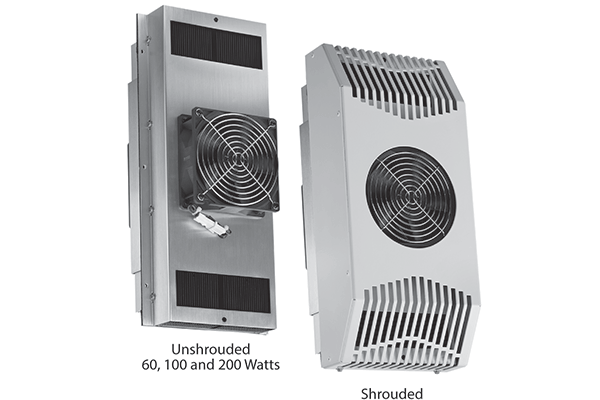

- Shrouded and unshrouded models included in standard packages
- Operating temperature range -40 C (-40 F) to 55 C (131 F)
- Partial recess mount
Specifications:
- Models
- 60 Watt, 24 Volt
- 100 Watt, 24/48 Volt
- 200 Watt, 24/48 Volt
Finish:
Shrouded finish includes both powder coat paint RAL 7035 light gray standard and stainless steel 304Accessories:
- Optional thermolelectric temperature controller regulates cooling and heating automatically
- Optional thermoelectric condenser manager helps direct condensation to the bottom of the enclosure
Notes:
Reference the Spec Sheet in the Downloads tab for complete product specifications.Technical Information
|
Catalog Number |
Description |
Width (mm) |
Depth (mm) |
Celsius Min. |
Celsius Max |
Weight (kg) |
Voltage |
Nominal BTU/Hr. |
Nominal Watts |
Height (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
|
TE090624020 |
24V w/o shroud |
123.00 |
176.00 |
-40 |
55 |
2.70 |
24 VDC |
178 |
52 |
230.0 |
|
TE090624010 |
24V w/ painted shroud |
128.00 |
176.00 |
-40 |
55 |
3.60 |
24 VDC |
178 |
52 |
236.0 |
|
TE090624011 |
24V w/ SS shroud |
128.00 |
176.00 |
-40 |
55 |
3.60 |
24 VDC |
178 |
52 |
236.0 |
