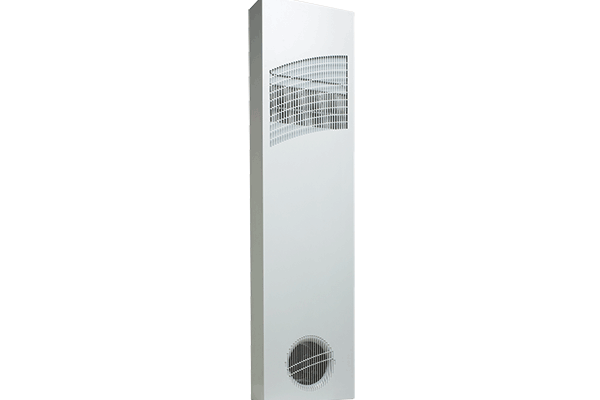

nVent Hoffman - ClimaGuard Air-to-Air Indoor - XR60
Description
Applications:
- Industrial automation
- Package handling equipment
- Security and defense systems
- And more
Features:
- Unique counterflow aluminum core for high-efficiency and high-performance heat transfer, except for the XR20 and XR29-08 which use a modified heat pipe core
- Models for 115 and 230 VAC power input
- UL Listed or Recognized to save customers time and money with agency approvals
- Operating temperature range from -20 F/-29 C to 140 F/60 C
- Streamlined aesthetics with no visible mounting rails; Slim design allows for mounting to narrow or shallow enclosures
- Reliable top-quality bearing fans and impellers make these units run quietly and with increased reliability
- Low-carbon mild-steel sheet-metal cover for rugged factory environments
- Easy-mount flanges for simple installation
- Mounting hardware, gaskets and user manual furnished with the unit
- Every unit functionally tested before shipping
- Filterless design for low maintenance and easy cleaning
- Four fasteners allow simple removal of front cover for easy access
Finish:
- RAL 7035 light-gray, semi-textured powder-coat paint standard
- Stainless steel Type 304 or 316 finishes available
- Other colors and textures available
Options:
- Special Voltage Package
- Outdoor Package*
- Stainless Steel Package*
Notes:
- * ClimaGuard may be more appropriate. Refer to ClimaGuard Air-to-Air Outdoor chapter. Consult the factory for availability and catalog number.
- Reference the Spec Sheet in the Downloads tab for complete product specifications, performance curves and detailed drawings.
Technical Information
|
Catalog Number |
Description |
Watts per °F Max |
Max Current (A) |
Voltage |
Fahrenheit Min. |
Fahrenheit Max. |
Height (in.) |
Width (in.) |
Depth (in.) |
Weight (lb.) |
|---|---|---|---|---|---|---|---|---|---|---|
|
XR605516012 |
XR60-55 |
55 |
6.6 |
100 - 120 VAC |
-20 |
140 |
59.66 |
15.24 |
5.92 |
86.00 |
|
XR605526012 |
XR60-55 |
55 |
3.3 |
200 - 250 VAC |
-20 |
140 |
59.66 |
15.24 |
5.92 |
86.00 |
|
XR608416012 |
XR60-84 |
84 |
6.6 |
100 - 120 VAC |
-20 |
140 |
59.66 |
15.24 |
9.92 |
106.00 |
|
XR608426012 |
XR60-84 |
84 |
3.3 |
200 - 250 VAC |
-20 |
140 |
59.66 |
